Antistatic Bar - Static Eliminator Bars - Standard Bar

ATS SERIES ANTI-STATIC BAR - (Short Distance Anti-Static Bar)
Order Code: ATS-HV-EN,  enquiry:
 export@aksteknik.com.tr
Selectable Length (mm)
GENERAL FEATURES

Antistatic Bar ATS-HV-EN generate a surrounding electrical field ionizing the air molecules to (+) and (-) ions so that (+) and (-) ions within a distance of 700 mm are neutralized for static electricity elimination. Accordingly damages that may be caused by static electricity are prevented. Another advantage of static eliminator bars is that electrical shocks,explosion and fire risk as well as dust collection is prevented. ATS Series ionizing bars is an antistatic ionizer neutralizing the static charges over the materials increasing quality and efficiency in production.ATS-HV-EN anti static ionizer bars can be considered as ionizer bars that are designed to neutralize undesired static charges generated during production. Even the pins of static ionizing bars are accidentally touched by hand, electrical shocks giving damage to human health are prevented. ATS-HV-EN electrostatic eliminator bars (anti-static ionzier bar) do not require calibration. Maintenance and cleaning is easy. Thanks to static neutralizer bars  manufacturing machinery can operate safely and make high quality production long terms  without any problem. Static neutralizing bars are used by various industries.

TECHNICAL DATA (ATS-HV-EN / STATIC ELIMINATOR BAR)
Output Voltage 8 kV AC
Polarity  Positive, Negative – 50 Hz
High Voltage Power Supply   8000 VAC – 10 mA Power Suppy
Emitter Pins  Stainless 304
Body    Alu and  PVC
İonization Structure  Epoxy
Cable  Screened HFFR Protected, Silicon HV Cable
Cable Length   2 mt
Cable Protection  Spiral Protected
Effective Distance    700 mm
Size    28x35 mm Profile, Max Length  4000 mm
Connection Type  Slotted, M6x30 mm
Certificate    CE
APPLICATION AREA

Packaging Machinery / Bag Cutting / Wicket Bag / Print Machinery / Textile Machinery, Nonwoven / Leather Sector / Automotive / Film and Packaging / Plastic Injection / Medical / Furniture / Electronical / Flexo Printing / Winding-Unwinding / Stentering Machinery / Conveyor Band / Serigraphy / Stretching / Label Machinery / Lamination / Extrusion / Paper Mill / Insulation Material / Paper Folding / Painting / Filling Lines / Offset Printing / Shrink Machinery / Vertical and Horizontal Packaging Machinery / Sheet Drawing / Thermoforming / Folding Machinery

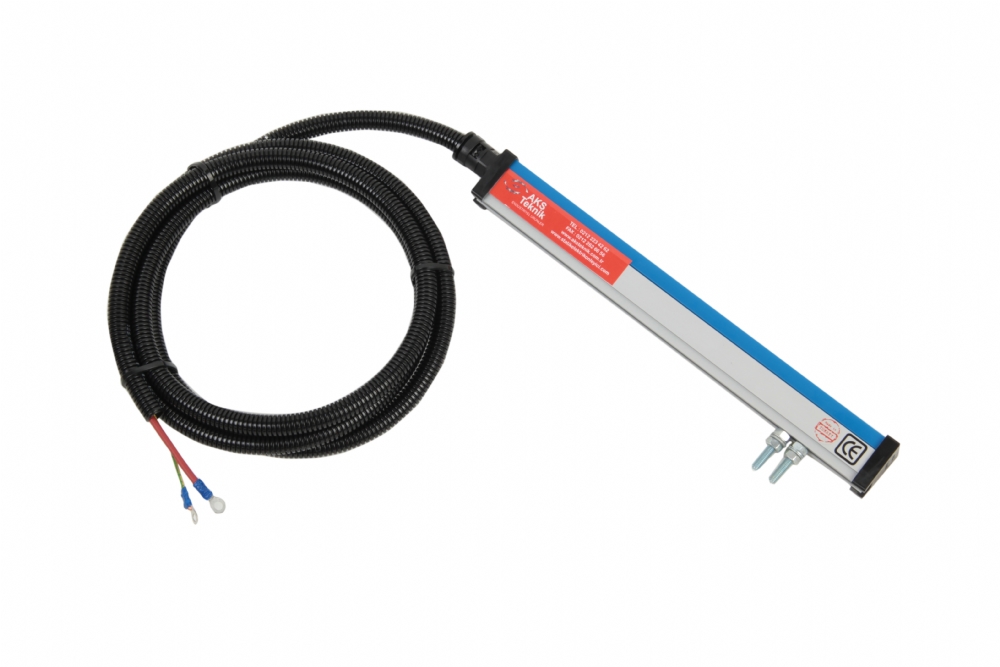

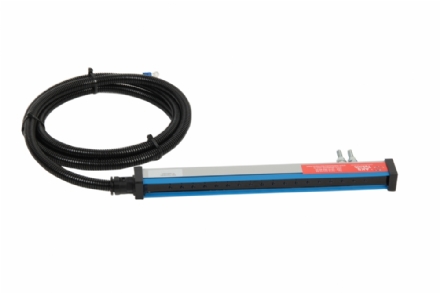

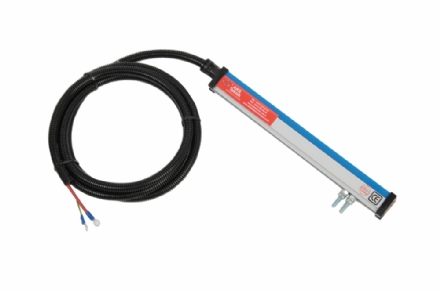

PRODUCT IMAGES:
